Effective Thermal Management in High-power Marine Spotlights
High-power marine spotlights for ships are critical in navigation, search-and-rescue, and other night operations on ships. Such lighting devices must deliver intense, dependable light for challenging marine settings where salt water, vibration, and fluctuating temperatures are the norm. One of the most pressing concerns in the engineering of these devices is heat dissipation. Without effective thermal management, the performance, lifespan and safety of marine spotlights can all suffer.
Table of Contents
Why Thermal Management is Important for High-power Marine Spotlights
Seems like spotlights generate insane levels of brighter output and heat and if heat is not carefully confined, the performance will core and also dip. We tend to forget that constant marine conditions tend to not vary meaning that spotlights need to perform without fail. Effective thermal management tends to resolve the issue more often than not.
Sustaining Performance at Sea
Tropical temperatures can drastically alter the spatial distribution of marine spot lights over the operational area. If the temperature is too high, the spotlight’s brightness will be lower. If it is too low, the angle of light the spotlight emits will result in a beam. The same protocols apply for LED marine spotlights and even standard halogen lights.
Extending the Lifespan of Components

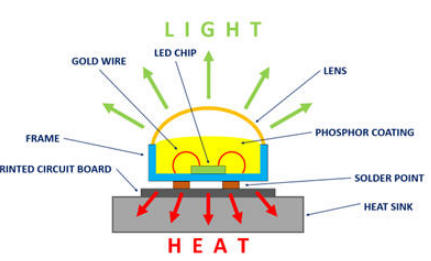

The light sources and electronics that are linked together relies on and suffer from thermal conditions. An increase in temperature causes overheating, which in turn causes premature failures in the LEDs, driver circuits, and connectors. Controlled effective thermal conditions can provide stable conditions to the components which delays the period before they dysfunction. Less replacements means more time and money saved, which proves to be useful in marine conditions as maintenance can be expensive and time intensive.
Preserving Structural Integrity
In the case of marine spotlights, the primary protection method from the surrounding environment is sealing, which is also often the primary method of protection against the electrolyte for case corrosion and associated mechanical loads. Thermal stress resulting from uncontrolled internal heat a spotlight can be married by overheating of seals, unintentional bulging of lenses, and spotlight cases’ yielding to cracking. Comprehensive thermal control does not only maintain the temperature of the light source, but also conserves the light spotlight elements from offshore environments, reinforcing their mechanical strength.
Enhancing Safety for Operators and Vessels
Ensuring safety during marine work is fundamental and above all. From a spotlight-operators’ perspective, spotlight overheating can result in uncontrolled light shutting, and in some extreme cases, fire and electricity related failures or catastrophes. These unpredictable and extremely dangerous situations can be avoided through the use of efficient thermal regulation systems and therefore, light tools can be used without any worries during sensitive work.
Supporting Energy Efficiency
The wastage of useful light energy which could have been useful as light energy and is discharged as heat energy is reflected as an increase in temperature. Improved thermal management increases efficiency of marine spotlights by improving the luminous output per energy consumed. Reduction of power demand is beneficial in terms of operational sustainability and fuel cost savings.
Thermal Management Techniques for High-power Marine Spotlights
Thermal management techniques which are developed for unique problems that are faced in the marine outlines are used by spotlight manufacturers for devices used in the oceans in order to ensure their dependability and lifetime.
1. Heat Sink Integration
The creation of heat sinks is one of the the most effective methods in which heat is managed in marine spotlights. Primarily constructed of aluminum and copper, these particular heatsinks have fins and ribbed surfaces which maximize the thermal dissipation area. For marine purposes, within the realm of conductivity, anodizing copper heatsinks can further improve their thermal efficiency for longer lifetime within saltwater.
2. Active Cooling Systems
In contrast to passive heat sinks which work for moderate thermal loads, more powerful devices such as powerful spotlights may demand additional measures for cooling. These devices may include sealed fans or liquid cooling systems which internally thermoregulate. With respect to marine applications, such configurations should be properly sealed to disallow moisture entry while ensuring stable airflow or liquid circulation to avoid overheating in prolonged runtime scenarios.
3. Thermal Interface Materials
Heat must be transferred efficiently from the light source to the heat sinks for heat sinks to work adequately. Materials such as thermal pastes, thermal pads, and thermal adhesives which interface between bonding surfaces work to minimize thermal resistance by increasing thermal contact conductance and subsequently moderating heat flow. These materials are employed to mitigate the local hotspot phenomenon, thus stabilizing the spotlight as well as protecting sensitive electronic systems from excessive temperatures.
4. Housing as a Heat Dissipator
The spotlight’s casing serves more than just an impact and water ingress protective cover; impact resistant marine spotlights also function as a thermal management device. Housings are often constructed with die-cast aluminum or stainless steel, ribbed or textured for enhanced conduction and convection cooling. MACHED is able to achieve a favorable balance between structural rigidity and thermal performance.
5. Smart Thermal Control Systems
Modern high-power marine spotlights are increasingly equipped with intelligent thermal management monitored through electronic control systems. Managed temperature conditions monitored with embedded sensors allow the spotlight to reduce power output or dim when the running temperature reaches a predefined threshold. Such protective actions reduce component damage, sudden thermal shutdowns, and other safety concerns.
Thermal Management Challenges in Marine Environments for Marine Spotlights
| Challenge | Description | Impact on Marine Spotlights |
| Saltwater Corrosion | Constant exposure to salt spray and humidity degrades metal heat sinks and housings. | Reduced heat dissipation efficiency and shortened spotlight lifespan. |
| Limited Airflow | Compact spotlight housings and enclosed mounting reduce natural convection. | Higher risk of overheating due to restricted heat release. |
| Wide Temperature Fluctuations | Marine spotlights operate in both tropical heat and freezing polar waters. | Stress on materials, causing expansion, contraction, and reduced reliability. |
| Continuous Operation | Long voyages and 24/7 use keep lights running for extended periods. | Sustained thermal load increases risk of component fatigue and failure. |
| Vibration and Shock | Vessel movement and engine vibrations affect thermal interfaces. | Reduced contact efficiency between components, leading to hotspots. |
| Waterproofing Constraints | Sealed enclosures limit ventilation and airflow options. | Difficulties in integrating active cooling without compromising water resistance. |
Future Innovations in Thermal Management for High-power Marine Spotlights
Although passive heat sinks and sealed housings continue to work well, there is a constant pursuit for better performance lifetime concerning efficiency and lifespan. Future breakthroughs in thermal management will redefine the durability and performance of marine spot lights, enabling reliable operation under the most extreme marine conditions.
1. Advanced Materials for Heat Dissipation
The use of advanced materials for marine spotlights, with exceptional conductivity, such as ceramics, is particularly promising. for these materials’ ability to conduct heat and resist saltwater corrosion is a double whammy of effectiveness and durability for marine applications. For instance, coatings reinforced with graphene can be utilized to evenly distribute heat across housings of spotlights, thus eliminating heat spots.
2. Phase-change and Adaptive Cooling Solutions
Marine spotlights suffer with high output from sudden bursts. These systems would benefit from using phase-change materials, which are capable of capturing and storing heat, then releasing it when temperature drop. Integrating systems with real-time conditions is the next step. Standalone hybrid systems will be able to passive and active cooling to achieve the desired temperature with much greater efficiency.
3. Smart Thermal Monitoring and AI Integration
Integrating sensors with smart electronics is changing the approach to thermal administration. Marine spotlights might one day have artificial intelligence technologies that monitor temperature trends and adjust output power to prevent overheating, predicting and averting failures. Such predictive maintenance would minimize service disruptions, prolong operational life, and improve safety of vessel operations.
4. Miniaturization and Design Optimization
Spot light design can become more compact with the thermal management technologies that spotlight performance. Optimized configurations and improved methods of constriction geospheres will enable weight and volume to be minimized while maintenance illuminance is retained. These innovations are crucial for vessels that are space constrained, or for mobile lighting applications that require a lightweight solution.
5. Sustainable and Energy-efficient Approaches
Improvements to thermal regulation will enable greater input energy to light conversion rather than heat wastage. Such innovations will be complemented with advanced vessels running on renewable energy and operationally conscious of energy use. Together, such measures will improve fuel consumption and reduce the overall fueling impact on the environment.
Summary
The performance and durability of high-power spotlights require effective thermal management. Innovative spotlight designs combined with advanced materials and smart cooling systems guarantees that the spotlights function in high performance on the harsh marine conditions. Further development on thermal management systems will keep improving spotlight technologies as marine operations increasingly rely on marine spotlights for their safety and efficiency.
