Design Requirements for Marine Searchlights in Low Temperature Environments
In low-temperature environments, marine searchlights face multiple challenges. As key safety equipment, their performance directly impacts vessel safety and operational efficiency. Below is an optimized design of marine lighting equipment for such conditions.
Table of Contents
Optical System Design
The optical system is critical for marine lighting systems in low temperatures. To prevent lens frost and icing, advanced anti-frost coatings and a heating device are used. High-quality LED light sources with multi-source redundancy ensure stable lighting even if some fail.
| Feature | Detail |
| Anti-frost Coating | Reduces water vapor affinity |
| Heating Device | Maintains lens temperature |
| LED Sources | High efficiency, long life |
| Redundancy Design | Ensures continuous operation |
Electrical System Design
Low temperatures affect battery performance. A specialized insulation box with a heating element maintains battery temperature. Lithium iron phosphate batteries are chosen for their low-temperature resilience. Circuit protection with redundancy prevents failures.
| Battery Type | Low-Temp Performance | Capacity Retention |
| LiFePO4 | Excellent | High |
| Others | Poor | Low |
Mechanical Structure Design
Careful design of materials and lubrication systems is key to ensuring the reliability of marine lighting equipment.
Selection of Low-Temperature Resistant Materials
The shell and bracket of marine searchlights should be made of low-temperature resistant materials, such as high-strength aluminum alloy or stainless steel, which can maintain good toughness and strength at low temperatures. For plastic parts, low-temperature resistant engineering plastics should be selected and appropriate surface treatment should be carried out, such as adding anti-crack coating, to prevent the material from becoming brittle and cracking at low temperatures, which will affect the structural stability of the searchlight.
Lubrication System Improvements
Low temperatures can cause lubricants to thicken or even solidify, causing rotating parts to stick or rotate awkwardly. Low-temperature resistant lubricants should be used to ensure that they can maintain good fluidity at low temperatures. At the same time, an automatic heating system for the lubricant can be designed. When the temperature is below a certain value, the lubricant is automatically heated to keep it within a suitable viscosity range. In addition, the use of non-lubricated rotating parts, such as magnetic suspension technology, is also an effective solution.
Safety Performance Design
Safety performance is crucial, especially insulation and pressure resistance performance and anti-electric shock protection measures.
Good Insulation Performance
Marine searchlights should have good insulation performance, and their insulation resistance should not be lower than the specified value, and they should be able to withstand the specified voltage test to prevent safety accidents such as electrical breakdown. In low temperature environments, the performance of insulating materials may change, so it is necessary to select appropriate insulating materials and perform strict insulation treatment to ensure electrical safety..
Anti-Electric Shock Protection Measures
Design reasonable anti-electric shock protection measures, such as using insulating casings and setting up protective covers, to prevent people from directly contacting live parts during use and ensure the safety of operators.
Environmental Adaptability Design
Ships are subjected to various vibrations and shocks during navigation, especially in low-temperature environments.
Strengthening Structural Design
Ships are subject to various vibrations and shocks during navigation, especially in low temperature environments, where the brittleness of materials increases and they are more susceptible to damage. Therefore, the structural design of marine searchlights should have sufficient strength and rigidity to withstand the specified vibration and impact tests, ensuring that there will be no loosening, breaking, deformation, and other problems in complex marine environments, and ensuring the stability of their performance..
Improving Protection Level

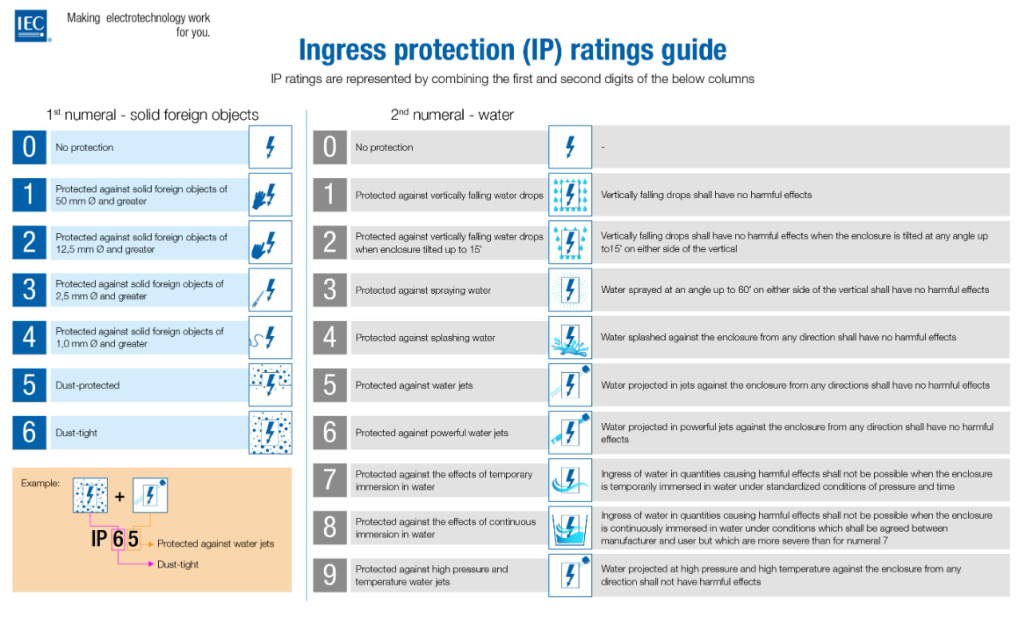

Improve the protection level of marine searchlights to make it waterproof and dustproof to prevent water and dust from entering the interior of the light and affecting the normal operation of electrical and optical components. It should at least reach IP67 level to meet the use requirements of ships in harsh sea conditions.
Control System Design
Intelligent control and monitoring systems, as well as temperature compensation and automatic adjustment functions, are key to improving the performance and reliability of marine lighting systems.
Remote Control and Real-Time Monitoring
Equipped with an intelligent control system, it can realize remote control of the searchlight, automatic adjustment of beam angle and brightness, etc. At the same time, it can monitor the working status of the searchlight in real time, such as temperature, voltage, current and other parameters, and feed back the data to the ship’s monitoring system. Once an abnormal situation is found, timely measures can be taken to avoid the occurrence of failures and improve the reliability and maintainability of the searchlight.
Temperature Compensation Function
Since low temperature has a certain influence on the luminous efficiency of the light source and the performance of the optical components, the control system of the searchlight should have a temperature compensation function, which can automatically adjust the driving current, beam angle and other parameters of the light source according to the changes in ambient temperature to ensure that the lighting effect and the performance of marine searchlights remains consistent at different temperatures.
Conclusion
In conclusion the design of marine searchlights operating in cold environments has to take into account multiple aspects. Utilizing the latest technology and a sensible structure, it will assure the reliable and stable operation of the marine searchlights in extreme conditions. The shipbuilding sector continues to investigate specific environments such as the Arctic regions The performance and design of lighting systems for marine use for low temperature conditions will be improved and improved.
