IP Ratings in Marine Searchlights

Marine environments are among the most challenging for electrical and lighting equipment due to constant exposure to saltwater, humidity and harsh weather conditions. In such demanding conditions, marine searchlights must be robust, reliable, and capable of operating safely and effectively over time. One critical specification that determines the durability and reliability of marine searchlights is the Ingress Protection (IP) rating. This article explores the significance of IP ratings in marine searchlights, the common IP rating in marine searchlights and how to select the right IP rating for searchlights.

Understanding IP Ratings

The IP rating system, defined by the International Electrotechnical Commission (IEC 60529), classifies the degree of protection that electrical enclosures provide against the intrusion of solid objects and liquids. The IP code consists of two digits:

  • First Digit (0–6): Indicates the level of protection against solid objects (e.g., dust, tools).
  • Second Digit (0–9K): Indicates the level of protection against water ingress (e.g., rain, waves, submersion).

For example, an IP66 rating means:

  • 6 – Complete protection against dust ingress
  • 6 – Protection against powerful water jets from any direction.

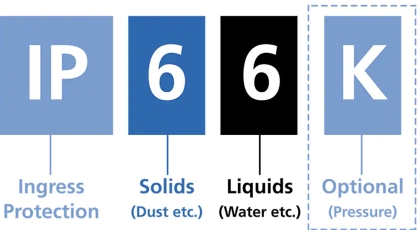

Understanding IP Ratings

Importance of IP Ratings in Marine Searchlights

This chart highlights the key aspects of why IP ratings are important for marine searchlights and their impact on performance, durability, and safety in harsh maritime environments.

AspectIP Rating ImpactWhy It’s Important
Dust ProtectionIP ratings like IP65, IP66, IP67, IP68 ensure the searchlight is dust-tight.Prevents salt, sand, and other particulate matter from entering the searchlight, ensuring longevity and consistent performance in marine environments.
Water ResistanceHigher IP ratings (e.g., IP66, IP67, IP68) provide increasing levels of protection against water ingress.Safeguards the searchlight from water exposure, preventing damage from splashing, rain, immersion, or submersion in marine operations.
Long-Term DurabilitySearchlights with higher IP ratings (e.g., IP68, IP69K) can withstand harsh environmental conditions.Increases the lifespan of the searchlights by ensuring it remains functional despite prolonged exposure to wet, salty, or harsh weather conditions.
Safety & ReliabilityIP ratings ensure the searchlight continues to operate safely without malfunction due to environmental conditions.Critical for maritime safety, where reliable lighting is needed for navigation, docking, and emergency operations.
Suitability for Harsh EnvironmentsHigher IP ratings (e.g., IP67, IP68) are designed for extreme environments (e.g., underwater or high-pressure situations).Ideal for vessels that operate in challenging environments such as offshore rigs, military vessels, or deep-sea operations where durability against water and harsh elements is necessary.
Ease of MaintenanceSearchlights with appropriate IP ratings are easier to maintain since they are built to resist the ingress of dirt, dust, and water.Reduced need for frequent maintenance and repairs in search lights, making operations more cost-effective and reliable over time.
marine searchlights

Common IP Ratings for Marine Searchlights

Understanding the common IP ratings for marine searchlights is vital for selecting the right product for specific marine applications.

1. IP65

The IP65 rating is commonly found in marine searchlights that need protection against solid particles and moderate water exposure. The “6” in the rating indicates that the device is dust-tight, meaning that no dust or debris can enter the enclosure, which is essential in marine environments where salt and sand are common. The “5” indicates that the searchlight is protected against low-pressure water jets from any direction.

This level of protection is typically sufficient for searchlights that are mounted on the exterior of a vessel and will face moderate exposure to water, such as rain or light splashing. However, these lights should not be exposed to powerful jets of water or prolonged immersion.

Applications

  • Vessels that face moderate weather conditions or splash exposure.
  • Deck-mounted searchlights that are occasionally exposed to rain or mild water jets.
  • Boats or yachts where the searchlight may occasionally be exposed to sea spray.

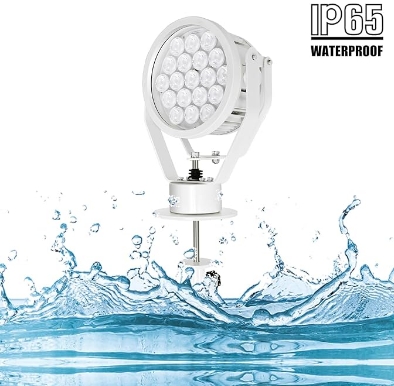

IP65 Marine Searchlight

2. IP66

An IP66 rating offers a higher level of water protection compared to IP65. The “6” still indicates that the device is dust-tight, ensuring no particulate matter can enter the housing. The “6” in the second digit means the searchlight can withstand powerful water jets from any direction without water entering the enclosure. This is particularly useful in marine environments where vessels may need to withstand high-pressure cleaning, heavy rain, or strong water splashes.

Marine searchlights with an IP66 rating are commonly used on ships and offshore platforms that operate in exposed environments or undergo routine high-pressure cleaning.

Applications

  • Commercial ships or offshore platforms exposed to heavy rain and high-pressure water jets.
  • Deck-mounted lights that need protection from water splashes or powerful jets.
  • Boats operating in rough weather conditions where rain or water jets may impact the equipment.

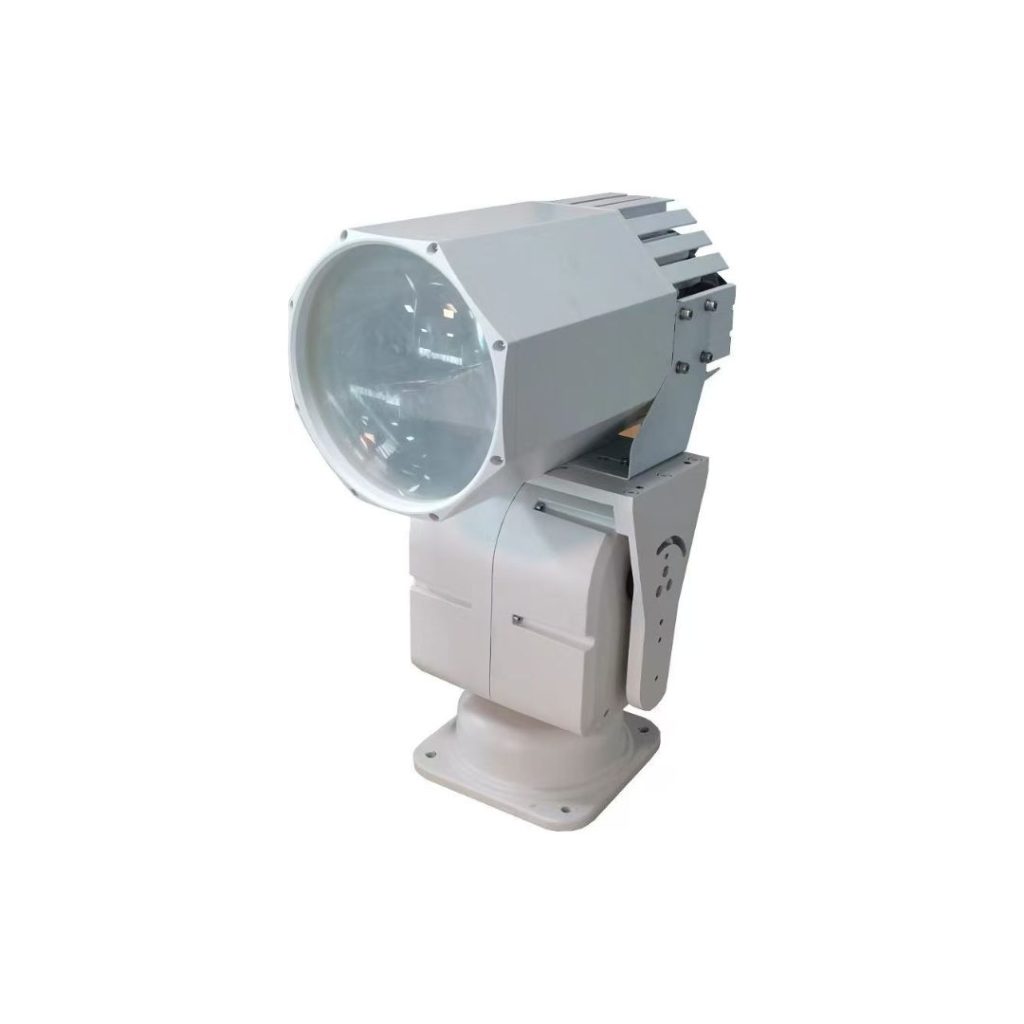

TG28 Marine Searchlight

3. IP67

The IP67 rating is one of the most popular choices for marine searchlights because it offers robust protection against water ingress. The “6” indicates that the light is dust-tight, while the “7” signifies that the searchlight can be submerged in water up to 1 meter for up to 30 minutes without suffering damage. This level of protection is essential for vessels that may experience temporary submersion due to rough seas, splashback, or operating in low-clearance areas where water exposure is frequent.

Searchlights with an IP67 rating are ideal for boats, yachts, and ships operating in conditions where temporary immersion or frequent water contact is likely.

Applications

  • Small boats or vessels that may be exposed to temporary submersion in water.
  • Searchlights used in coastal or offshore operations where splashing or short immersion can occur.
  • Emergency or rescue vessels that may experience unpredictable water contact.

4. IP68

An IP68 rating offers the highest level of protection against water ingress. The “6” still indicates complete dust protection, and the “8” means that the searchlight can be continuously submerged in water beyond 1 meter without sustaining any damage. This rating is commonly found in searchlights used in underwater or submersible applications, where equipment is expected to operate in submerged conditions for extended periods.

Marine searchlights with an IP68 rating are typically used for underwater navigation, ROVs (Remotely Operated Vehicles), or vessels operating in areas with constant water immersion.

Applications

  • Underwater vessels or ROVs (Remotely Operated Vehicles) that require continuous immersion.
  • Submersible equipment used in deep-water diving or operations.
  • Searchlights installed on vessels working in continuously wet or submerged environments.
TZ3-A Marine Searchlight

5. IP69K

The IP69K rating is the highest level of protection for searchlights exposed to both extreme water pressure and high temperatures. The “6” signifies that the device is dust-tight, and the “9K” indicates that the searchlight can withstand high-pressure, high-temperature water jets from any direction, including steam cleaning. This rating is particularly valuable in applications where equipment is subject to harsh cleaning methods, such as during routine maintenance in offshore or industrial environments.

Although not as common as other IP ratings for marine searchlights, IP69K-rated lights are used in environments where cleaning with steam or high-pressure jets is necessary.

Applications

  • Industrial marine equipment requiring frequent cleaning with high-pressure water and steam.
  • Searchlights mounted on offshore platforms or vessels that undergo intense cleaning procedures.
  • Military and rescue vessels exposed to extreme environmental conditions and frequent high-pressure washdowns.
TZ6-A LED Marine Searchlight

Choosing the Right IP Rating for Your Marine Searchlights

Selecting the correct IP rating for your marine searchlight is crucial for ensuring long-term performance and reliability. Each IP rating, such as IP65, IP66, IP67, IP68, and IP69K, offers different levels of protection against dust and water ingress, so it’s important to match the right rating with the specific environmental conditions and operational needs of your vessel.

  • IP65 is suited for light exposure to rain and splash.
  • IP66 protects against powerful water jets.
  • IP67 ensures protection against temporary submersion.
  • IP68 is ideal for continuous submersion in water.
  • IP69K is necessary for high-pressure washing and steam cleaning environments.

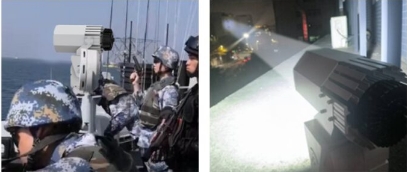

Applications of Marine Searchlights

Final Thoughts

IP ratings are a crucial specification when evaluating marine searchlights, directly impacting safety, performance and equipment longevity. Understanding these IP ratings allows marine professionals selecting the searchlight with the appropriate IP rating based on environmental challenges and operational needs to ensure long-term durability, safety, and optimal performance at sea.
